Mill DXF General Usage Instructions

Mill DXF Help

To save the selected board as a multilayer dxf file for milling on Homag or Biesse Rover CNC machines:

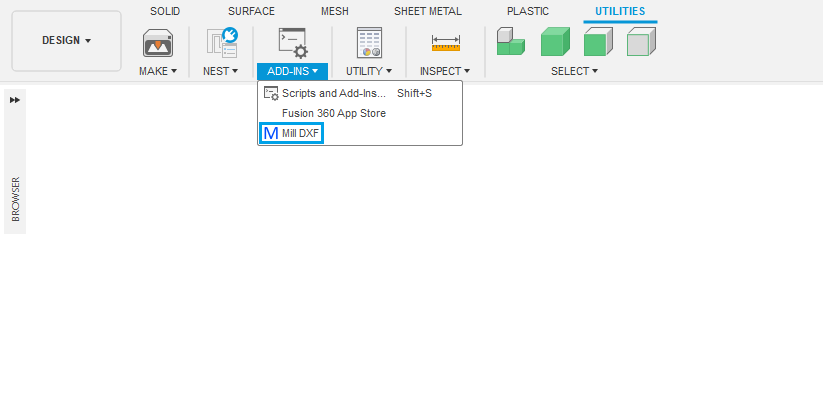

  1. Press the Mill DXF button in the Add-Ins panel.
  2. Select a face on the board.
  3. Choose a machine.
  4. Specify the panel thickness, offset, z dimension, tool number, compensation side and milling depth.
  5. Specify the max hole diameter for drilling.
  6. Specify the drilling depth.
  7. Check the Separate Hole Layers checkbox to save holes in separate layers.
  8. Check the Include Section checkbox to save a layer with a section through the middle of the board.
  9. Press the OK button.
1. Press the Mill DXF button in the Add-Ins panel.
2. Select a face on the board.
3. Specify the machine, panel thickness, offset, z dimension, tool number, compensation side, milling depth, max hole diameter for drilling and drilling depth.
4. The board saved as a multilayer dxf file.
