Hinge Holes General Usage Instructions

Hinge Holes Help

To create holes in boards:

  1. Press the Hinge Holes button in the Solid > Modify panel.
  2. Select the board face.
  3. Select the side face.
  4. Specify the name of the holeset.
  5. Press the OK button.

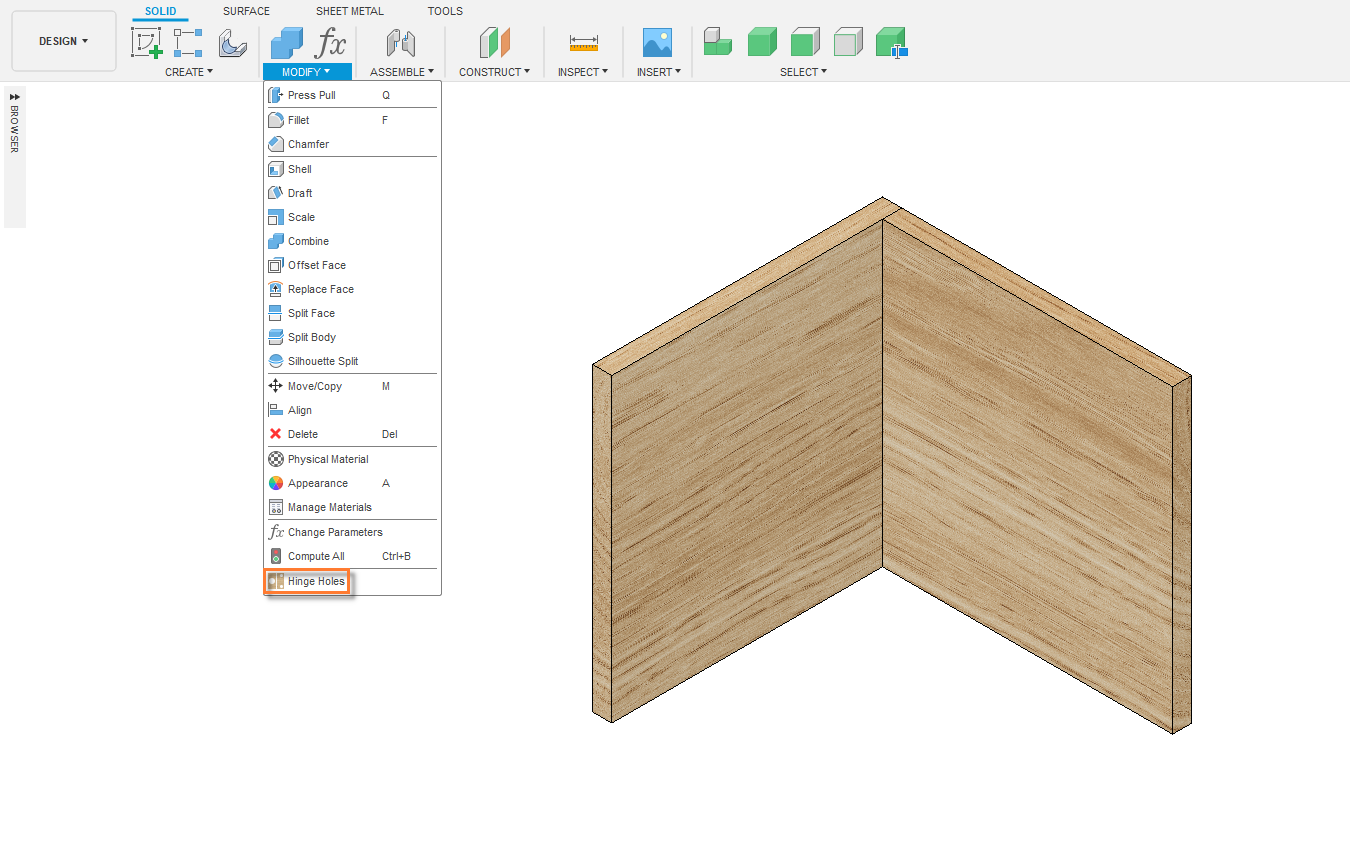

1. Press the Hinge Holes button in the Solid > Modify panel.
2. Select the board face.

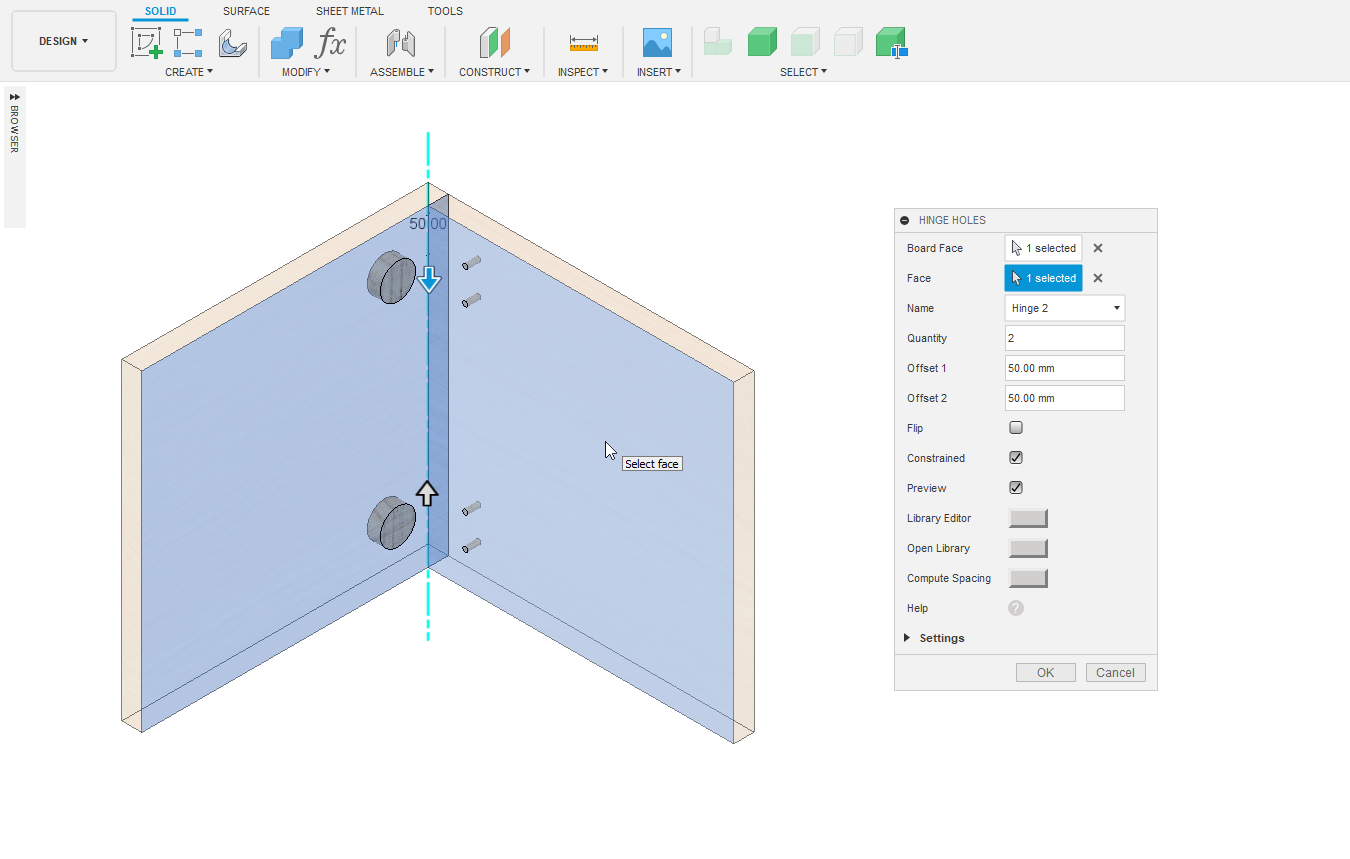

3. Select the side face.
4. Specify the name of the holeset.

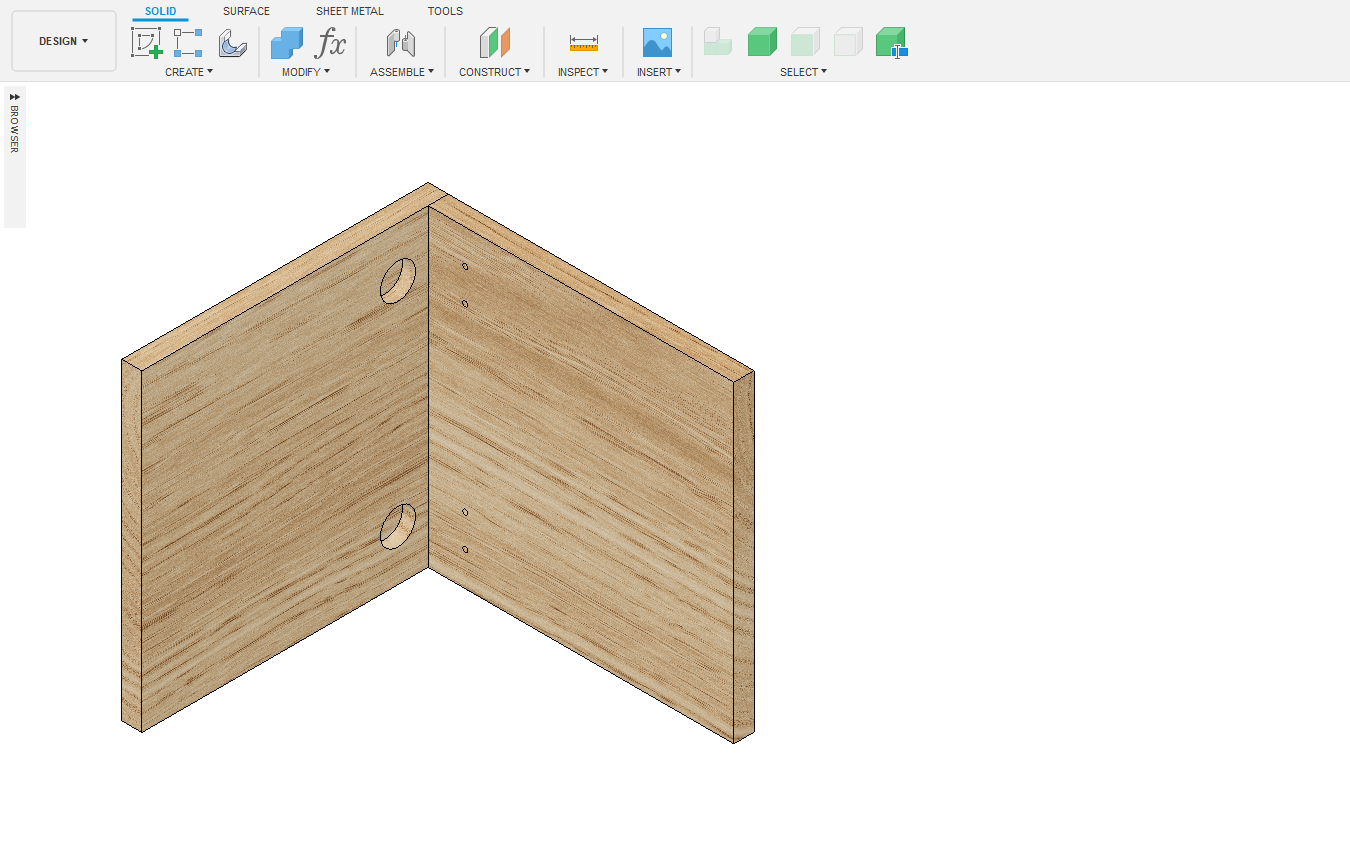

5. Hinge holes.
