Holes at 180 Degrees

Hinge Holes Help

To create holes at 180 degrees:

  1. Open Library Editor. Add a hole with the boardB location.
  2. Add a hole with the faceA location.
  3. Select faces.

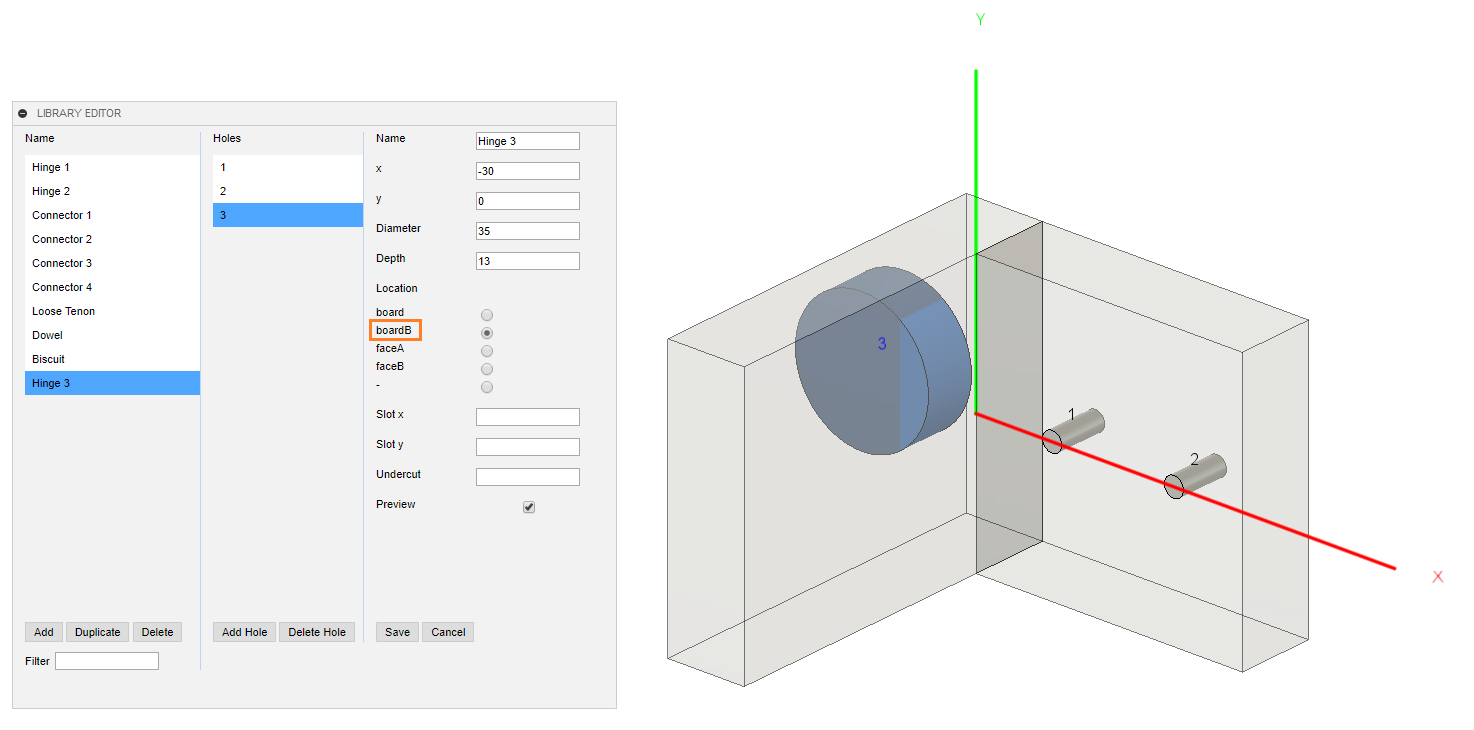

1. A hole with the boardB location.

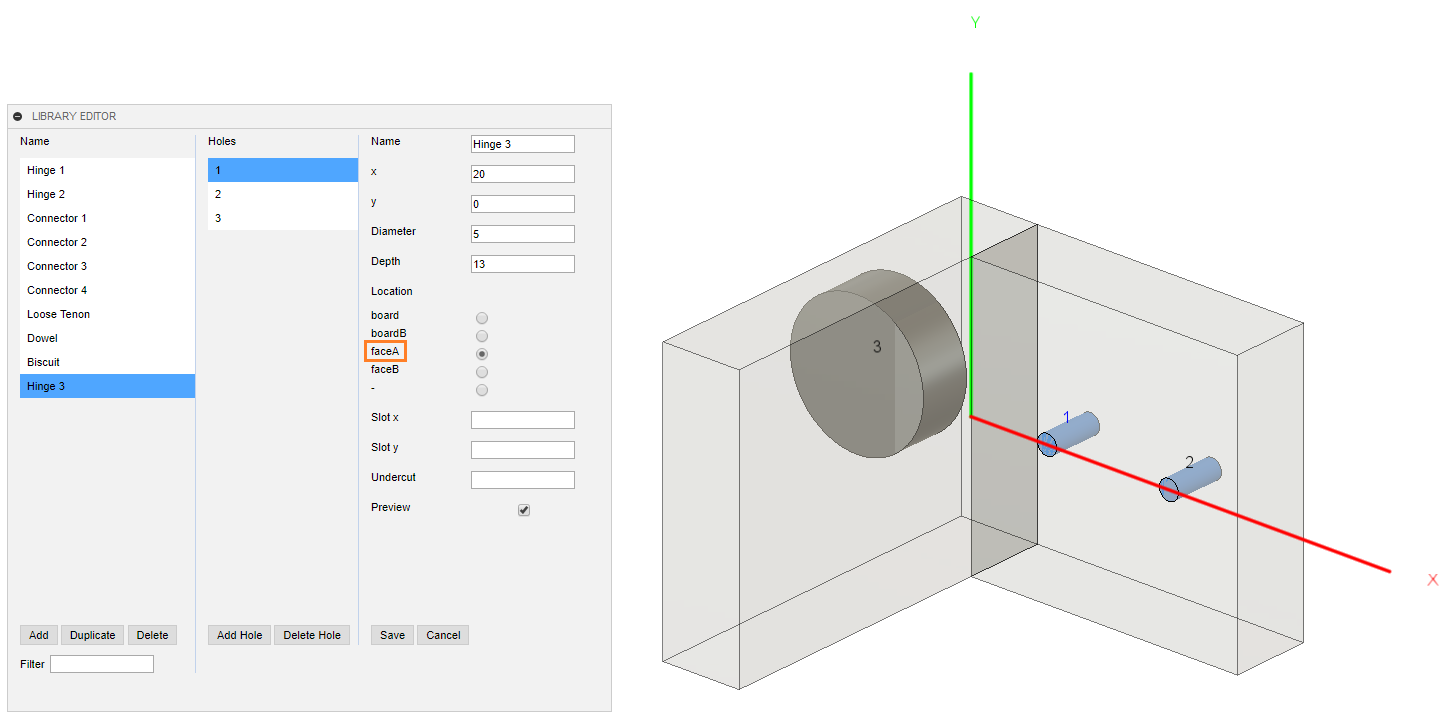

2. A hole with the faceA location.

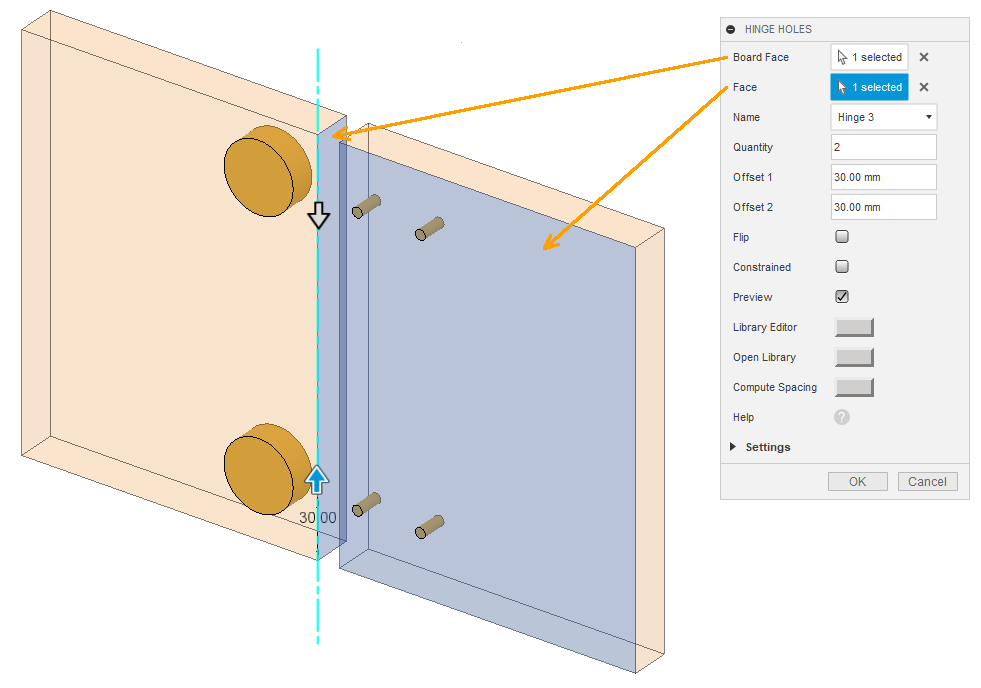

3. Select faces.

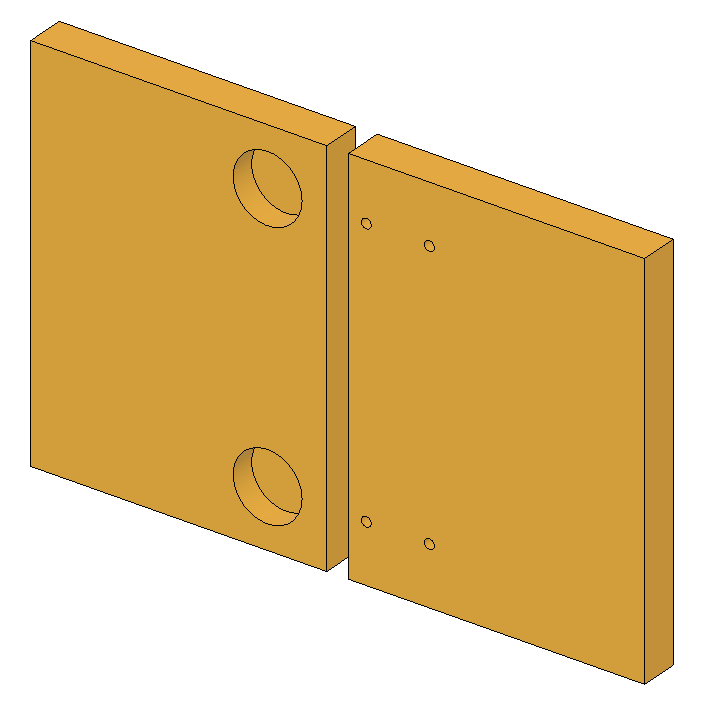

4. Holes at 180 degrees.
