Update the Spacing Between Hole Sets

Hinge Holes Help

To update the spacing between hole sets:

  1. Select the Constrained checkbox before creating hole sets.
  2. Modify the width of the boards in the Parameters table.
  3. Press the Hinge Holes button in the Modify panel.
  4. Press the Compute Spacing button.

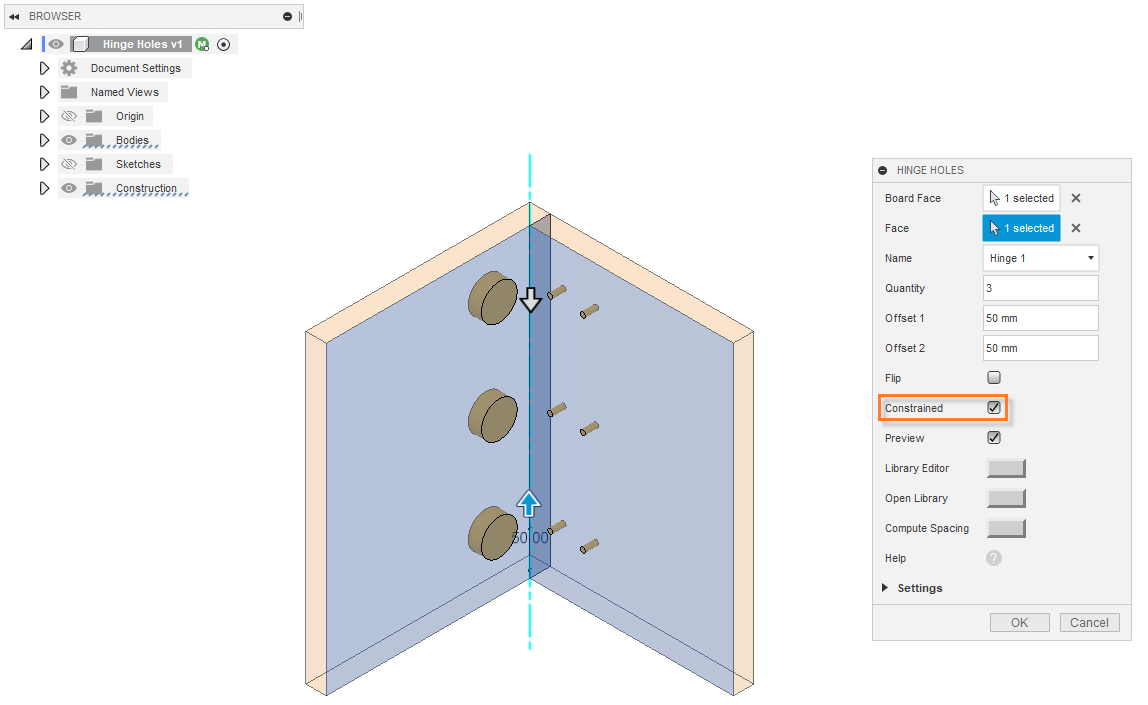

1. Select the Constrained checkbox before creating hole sets.

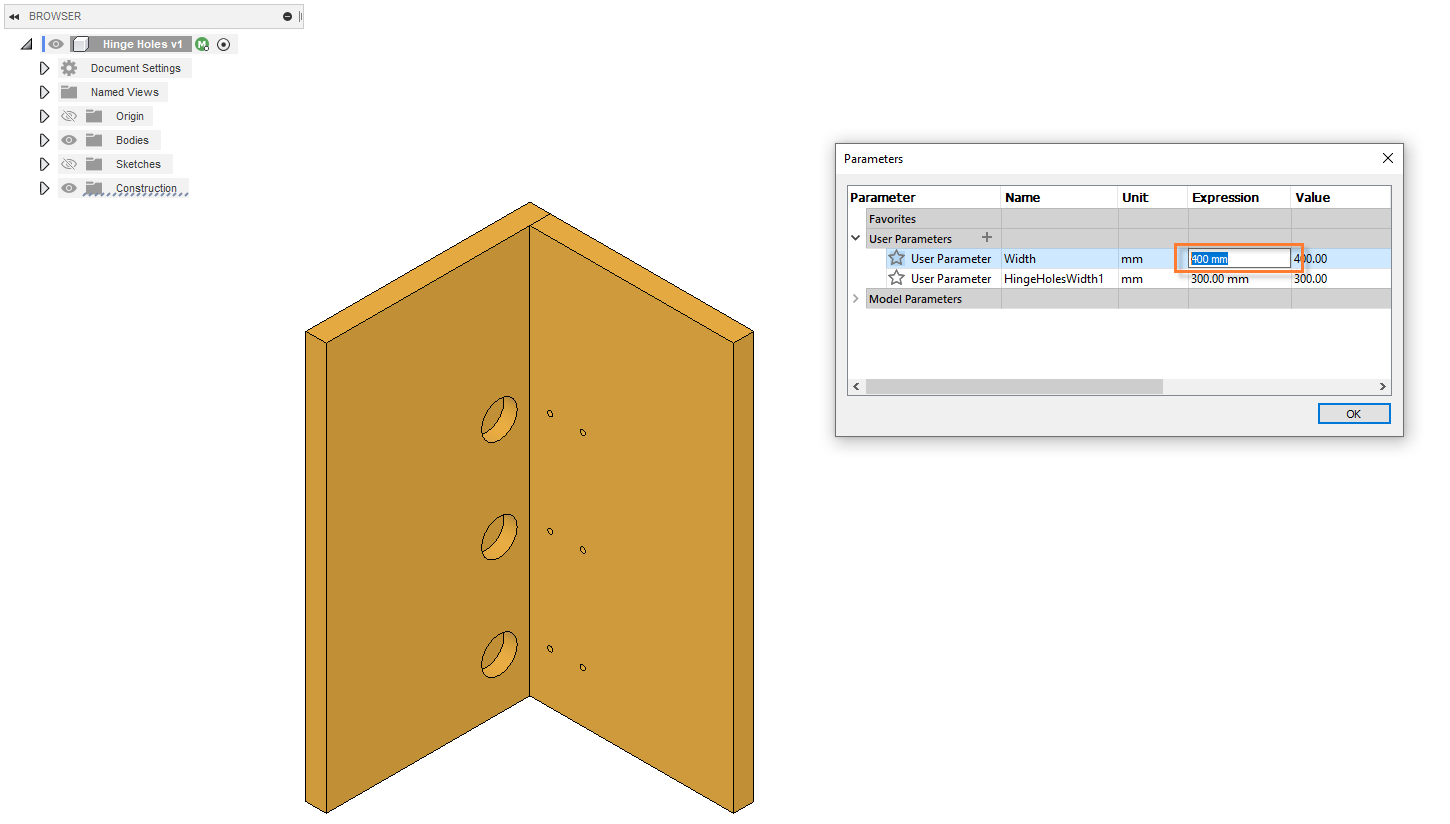

2. Modify the width of the boards in the Parameters table.

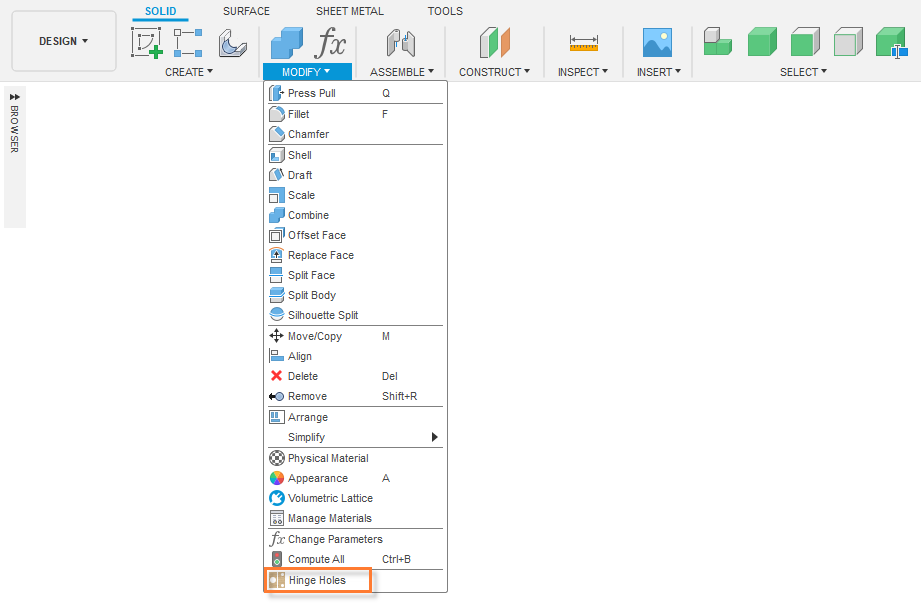

3. Press the Hinge Holes button in the Modify panel.

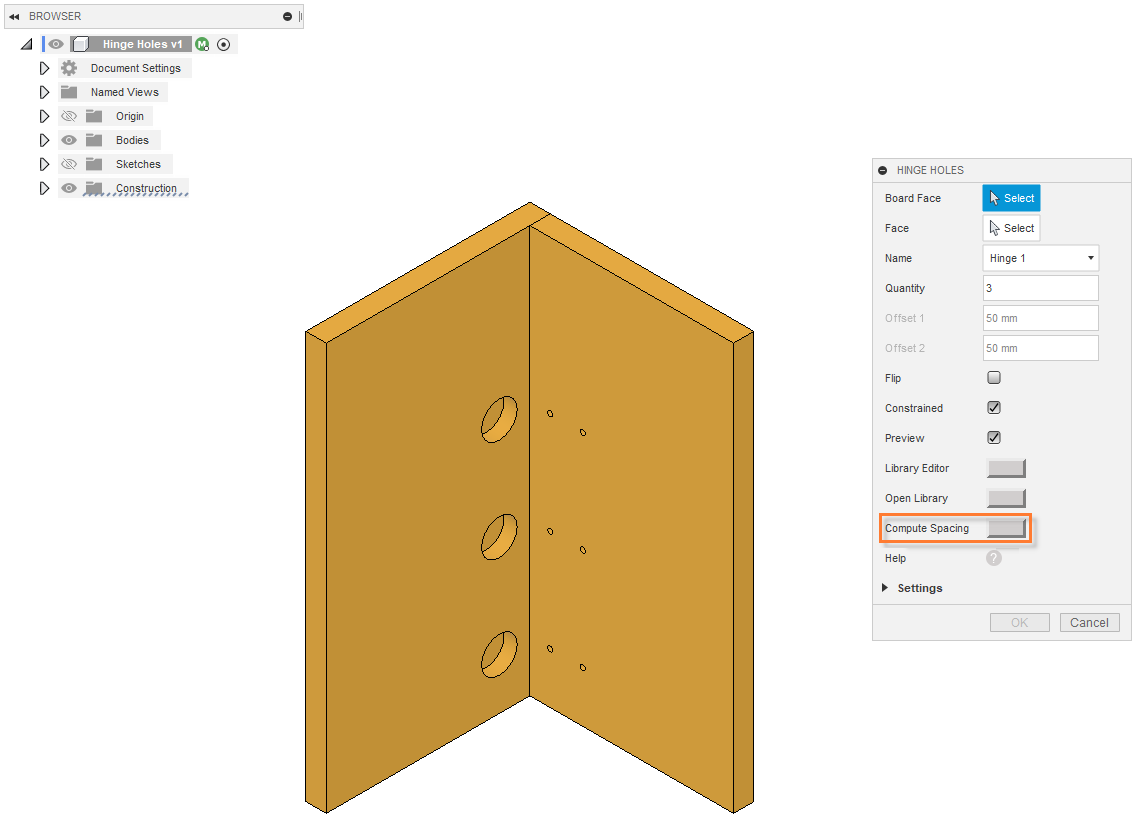

4. Press the Compute Spacing button.

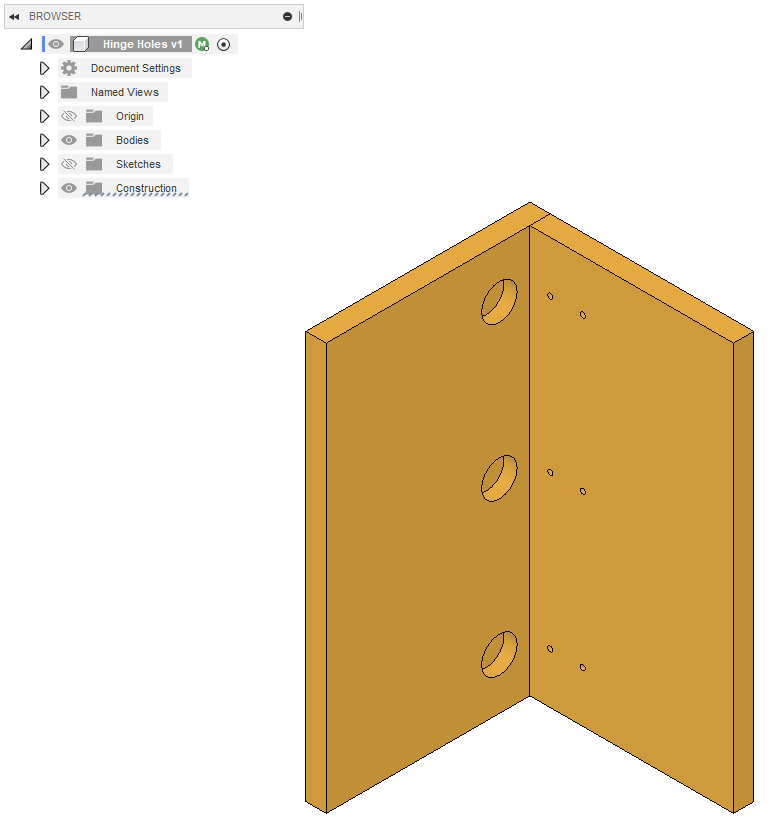

5. The updated spacing.
