Single mortise and tenon
Mortise and Tenon Help
To add a single mortise and tenon to a rectangular face:
Press the “Mortise and Tenon” button in the “Modify” panel.
Select a stile to cut the mortise.
Select a face for the tenon.
Specify 1 in the number of tenons input. Specify joint depth, length, thickness, offsets.
Press the “OK” button.

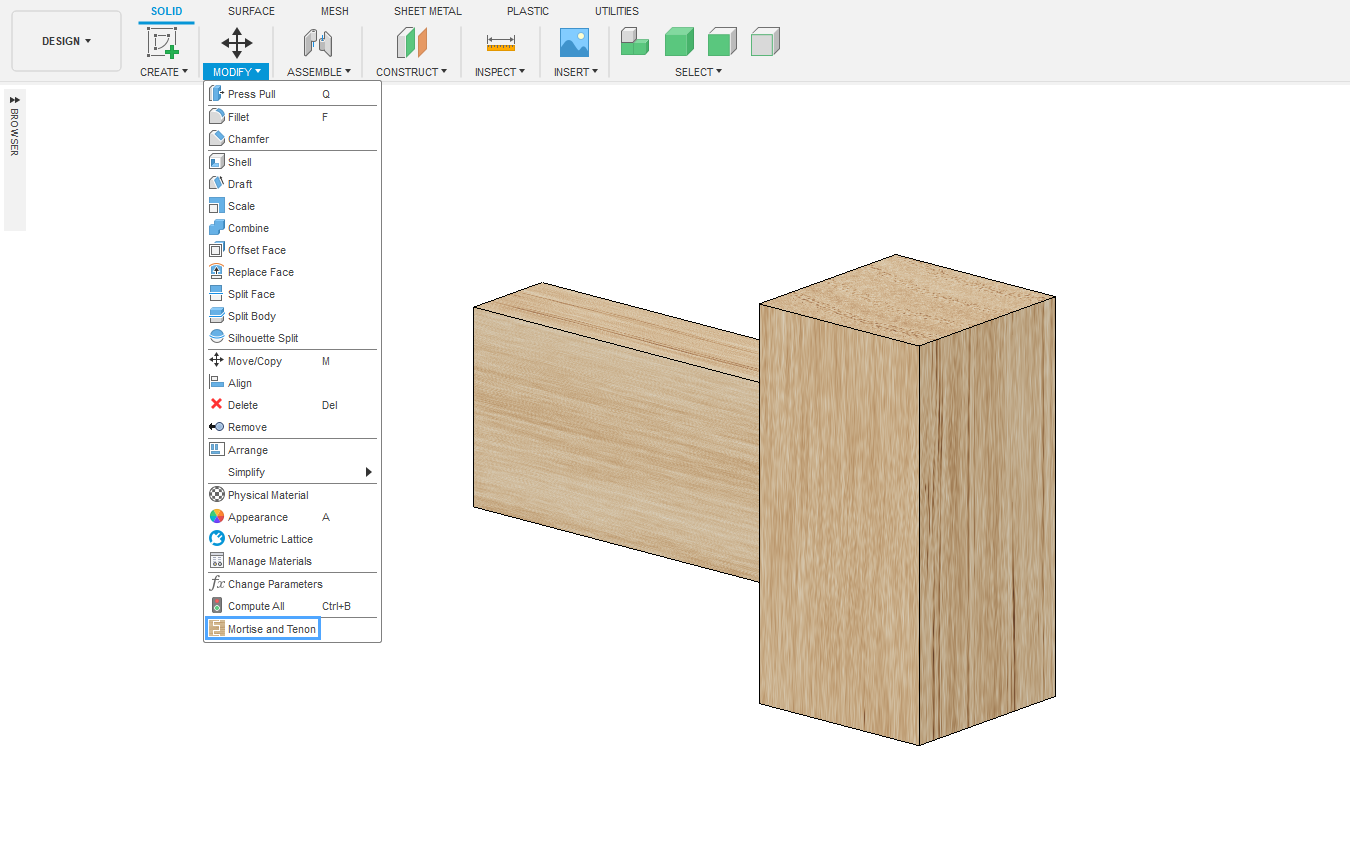

1. Press the "Mortise and Tenon" button in the "Modify" panel.

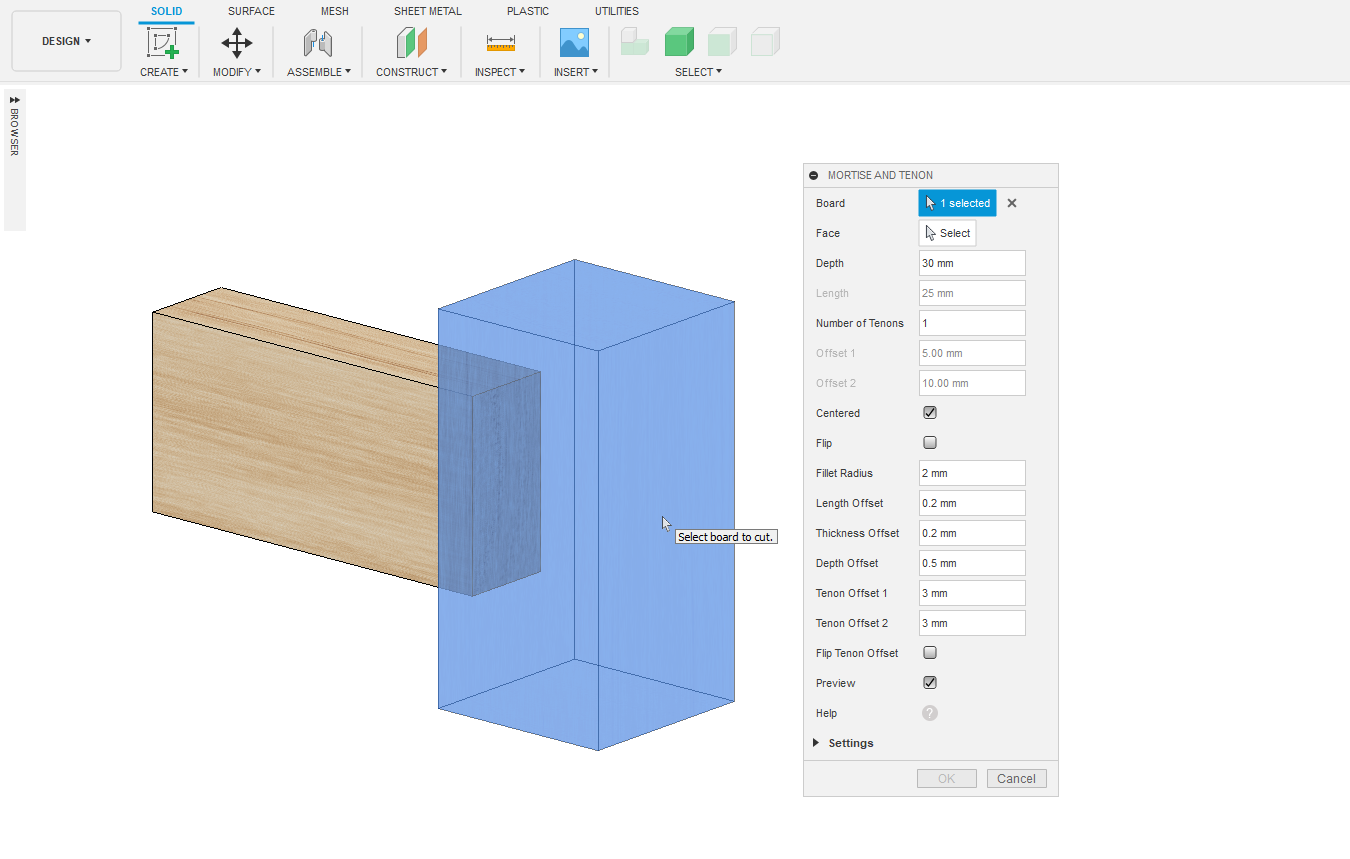

2. Select a stile.

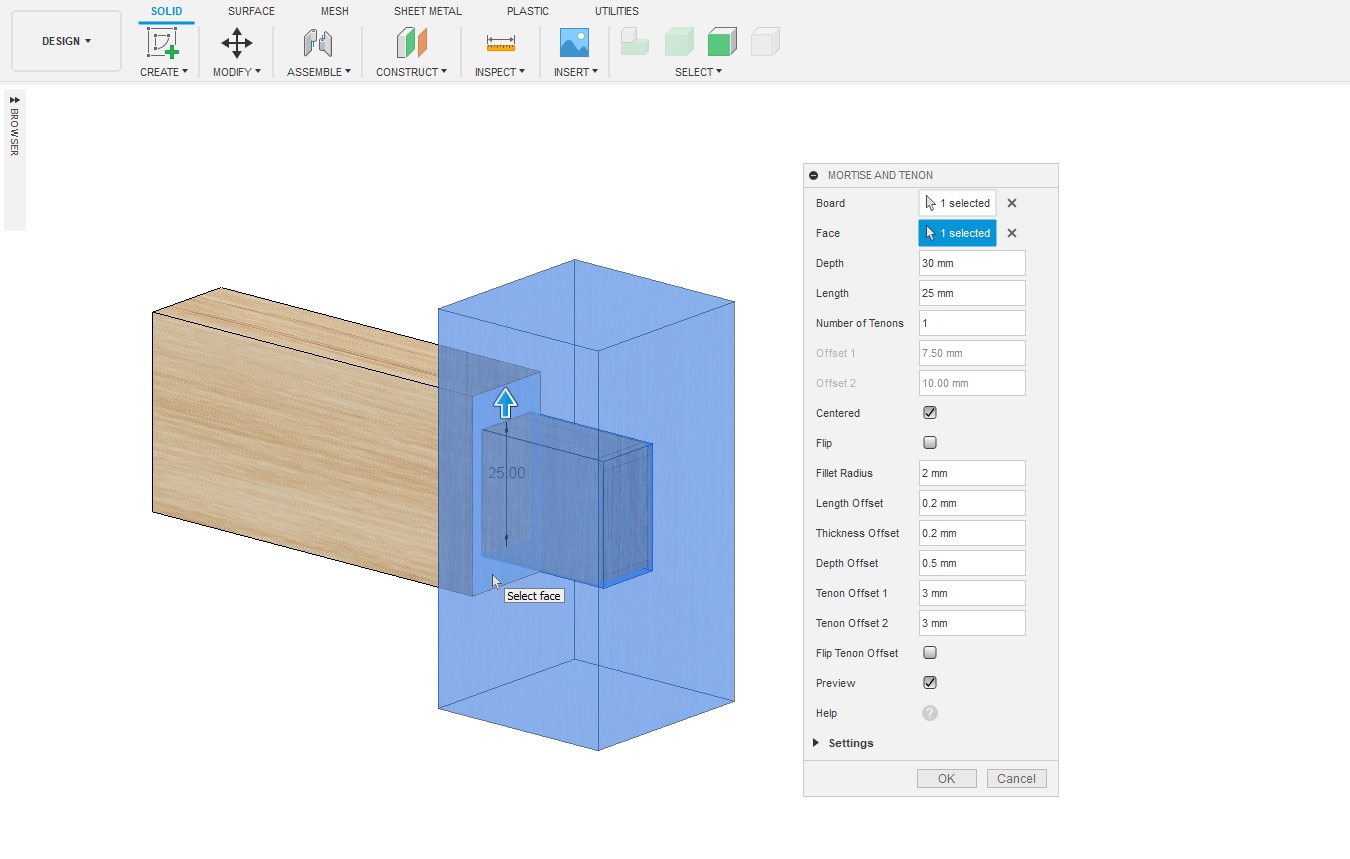

3. Select a face for the tenon.

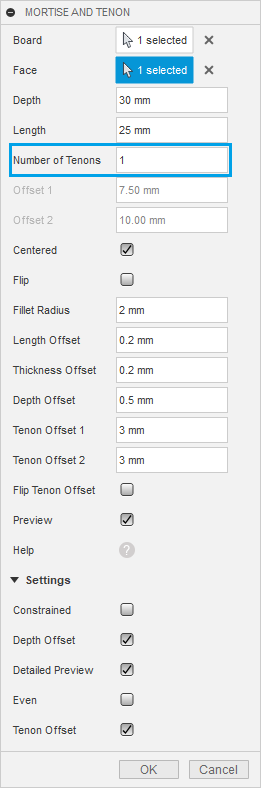

4. Specify 1 in the number of tenons input. Specify joint depth, length, thickness, offsets.

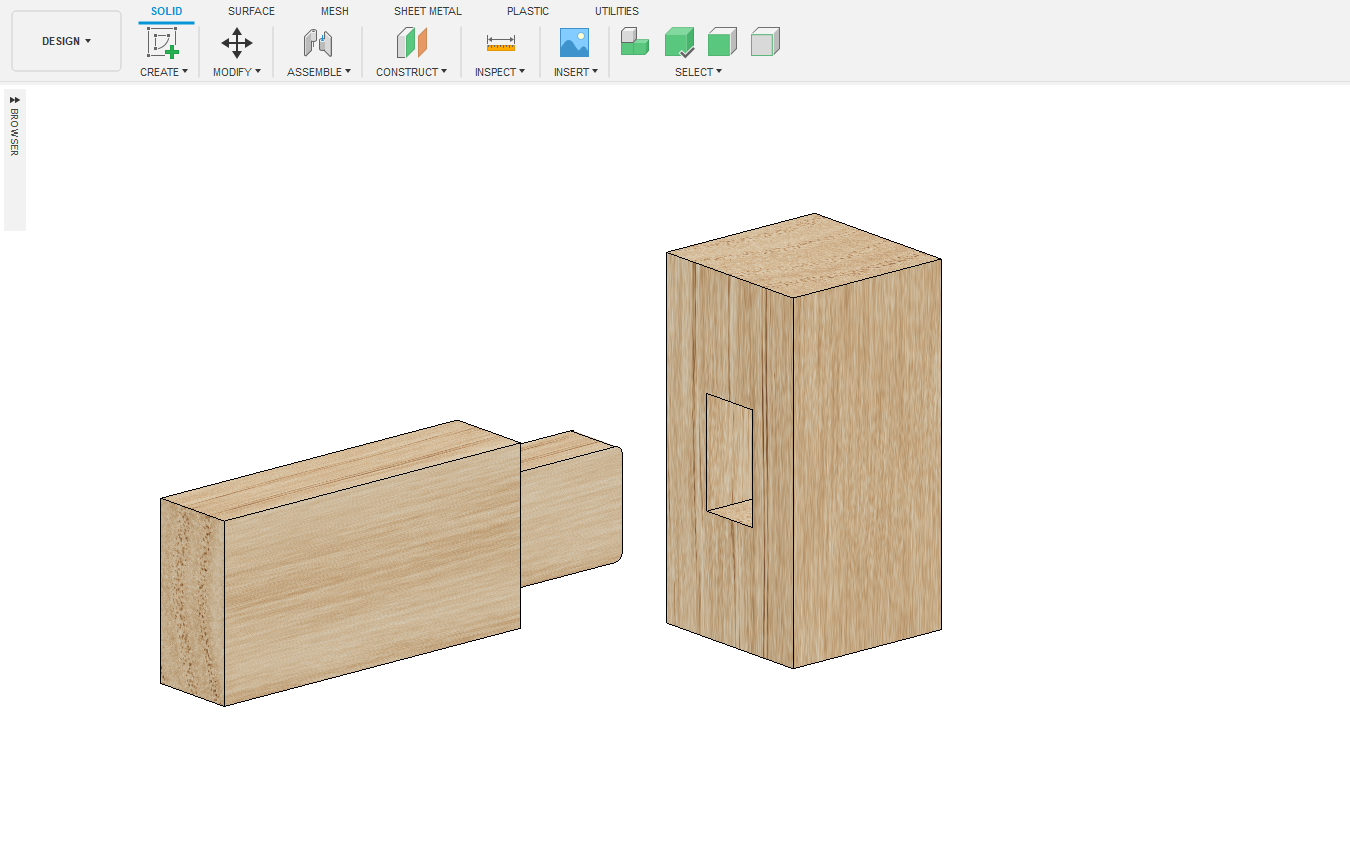

5. Mortise and tenon.
