Through Mortise

Mortise and Tenon Help

To add a through mortise to a rectangular face:

  1. Press the “Mortise and Tenon” button in the “Modify” panel.
  2. Select a board to cut the mortise. Select a face for the tenon
  3. Check the “Depth Offset” checkbox and set the “Depth Offset” to the thickness of the board or larger.
  4. Specify number of tenons, depth, length, thickness and offsets.
  5. Press the “OK” button.

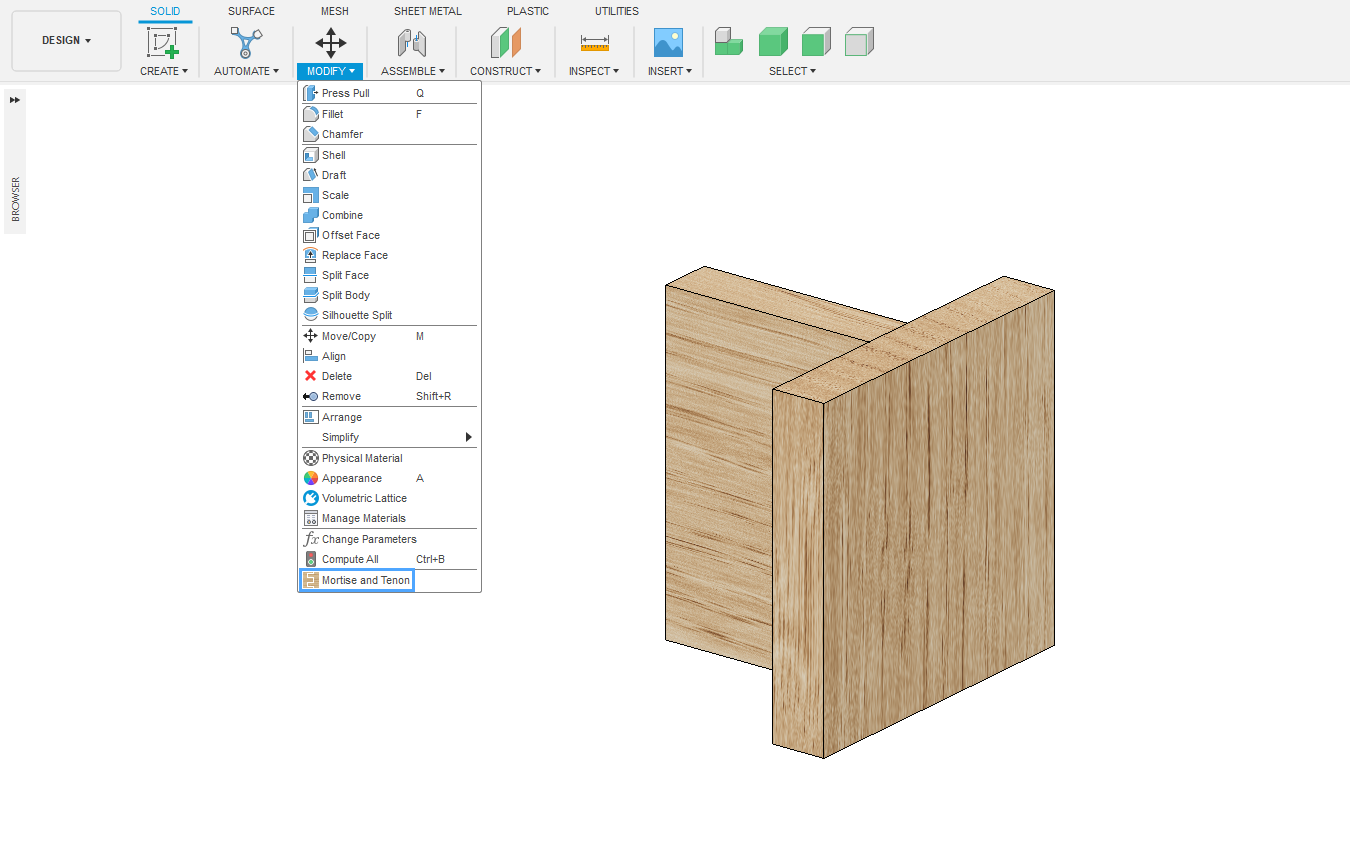

1. Press the "Mortise and Tenon" button in the "Modify" panel.

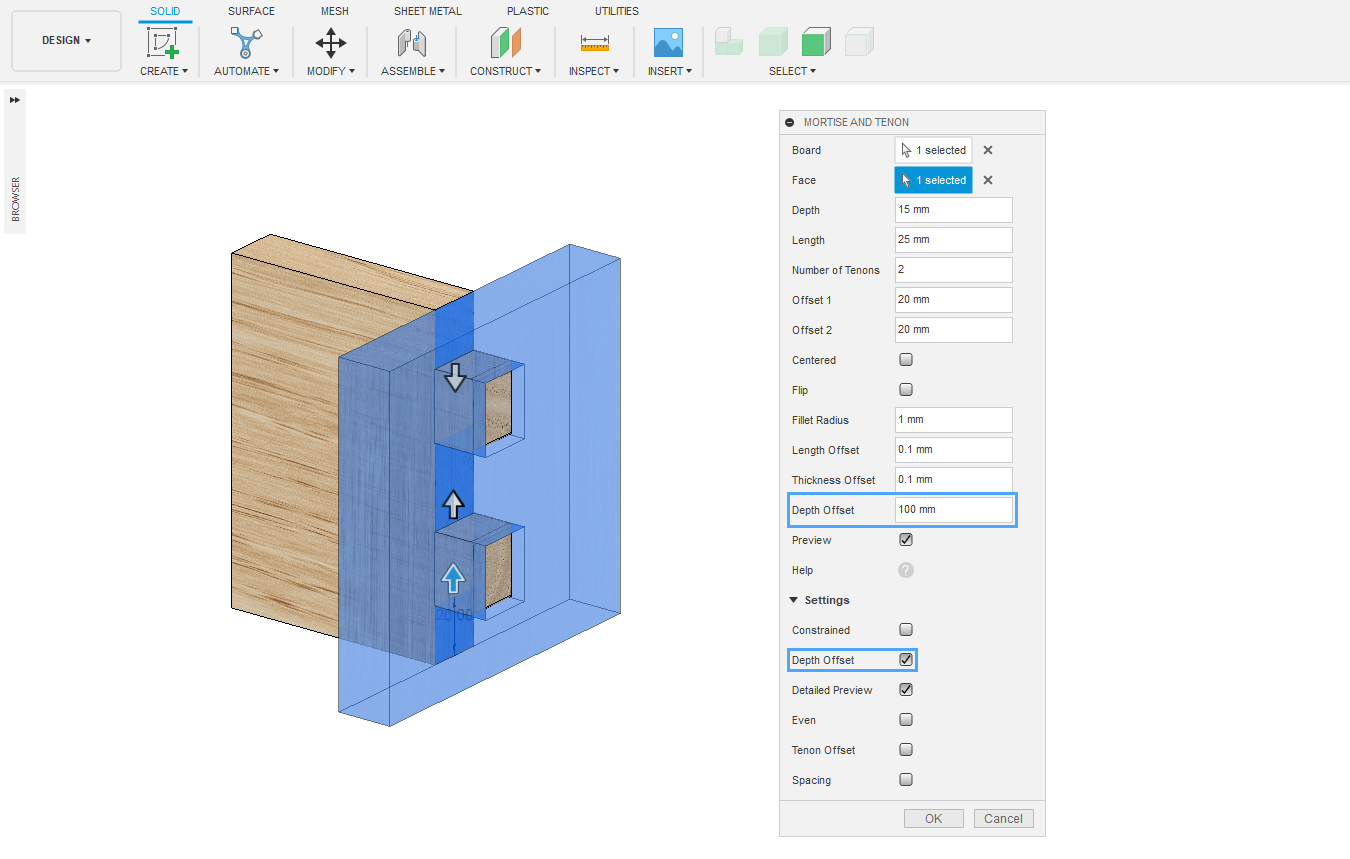

2. Check the "Depth Offset" checkbox and set the "Depth Offset" to the thickness of the board or larger.

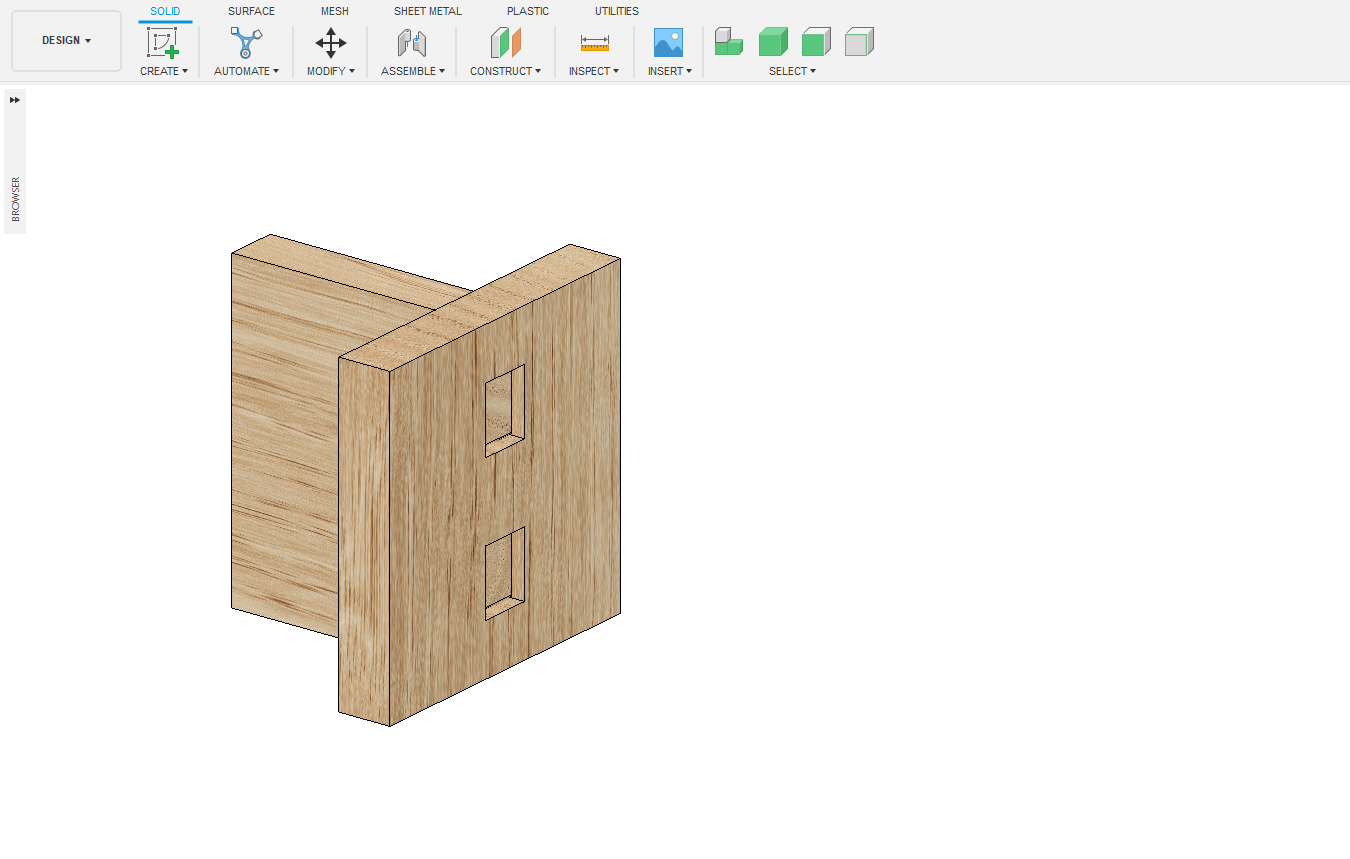

3. Through mortise.

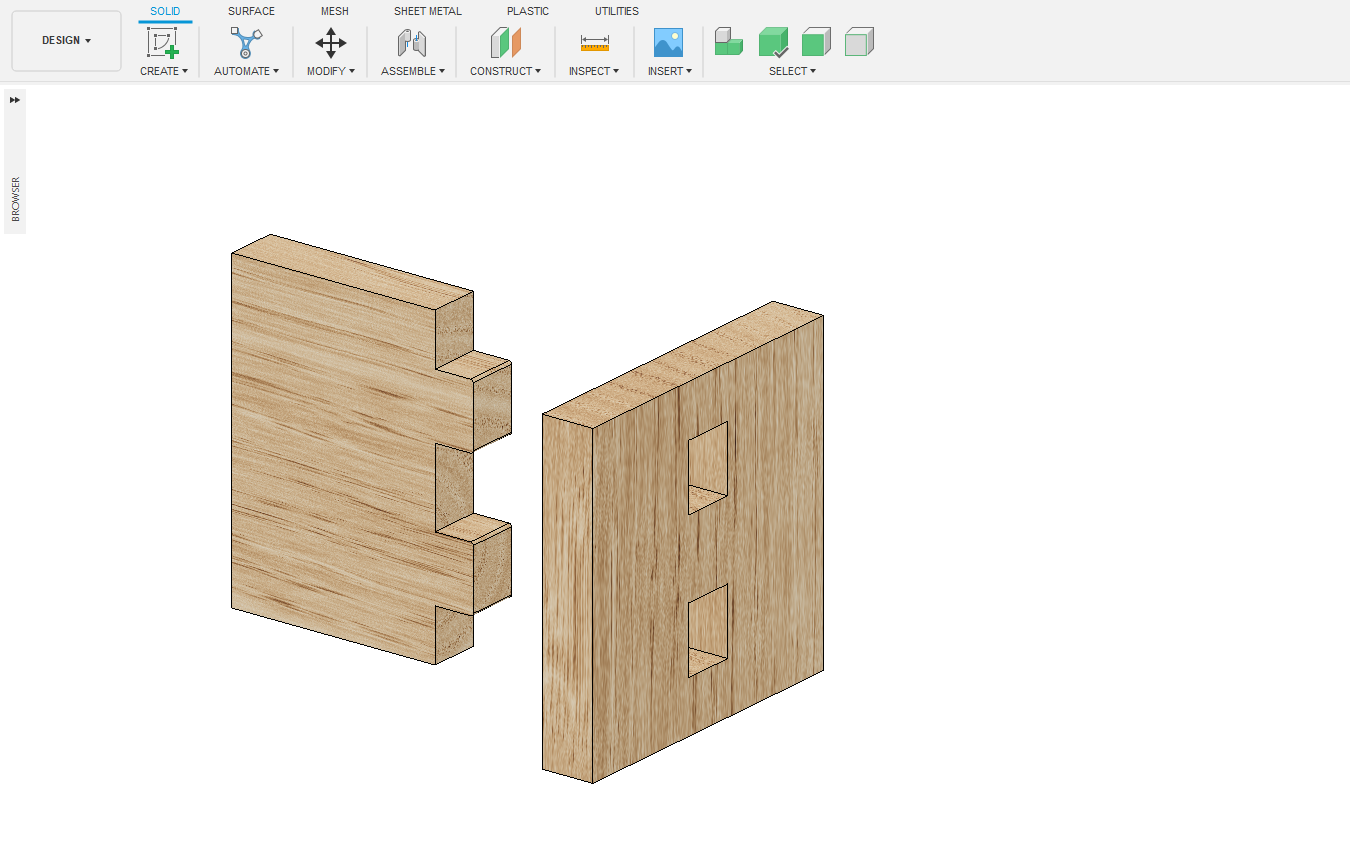

4. Through mortise.
