Rotate a plane for the sketch 180 degrees

Text on Arc Help

If text on an arc is flipped, rotate a plane for the sketch 180 degrees:

  1. Press the Plane at Angle button in the Solid > Construct.
  2. Create a new plane rotated 180 degrees.
  3. Create a new sketch on the plane.

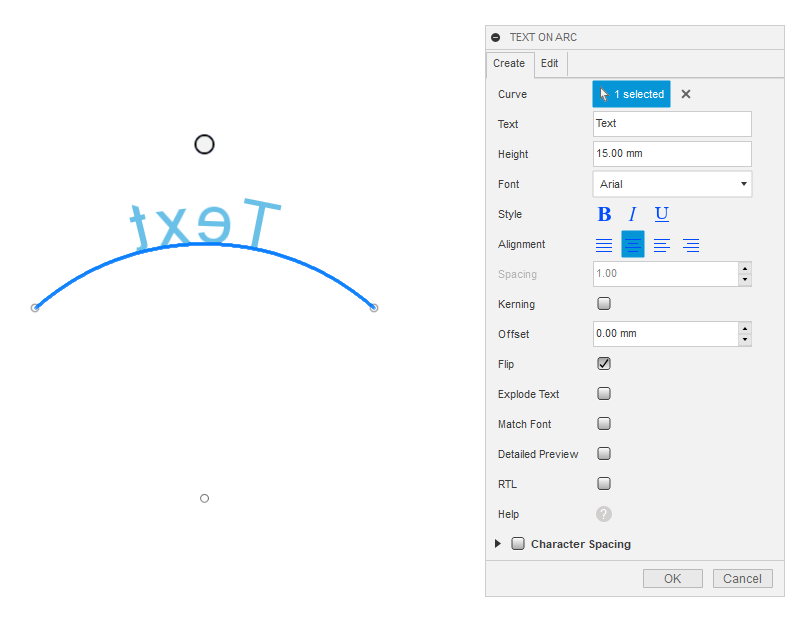

1. Flipped text on an arc.

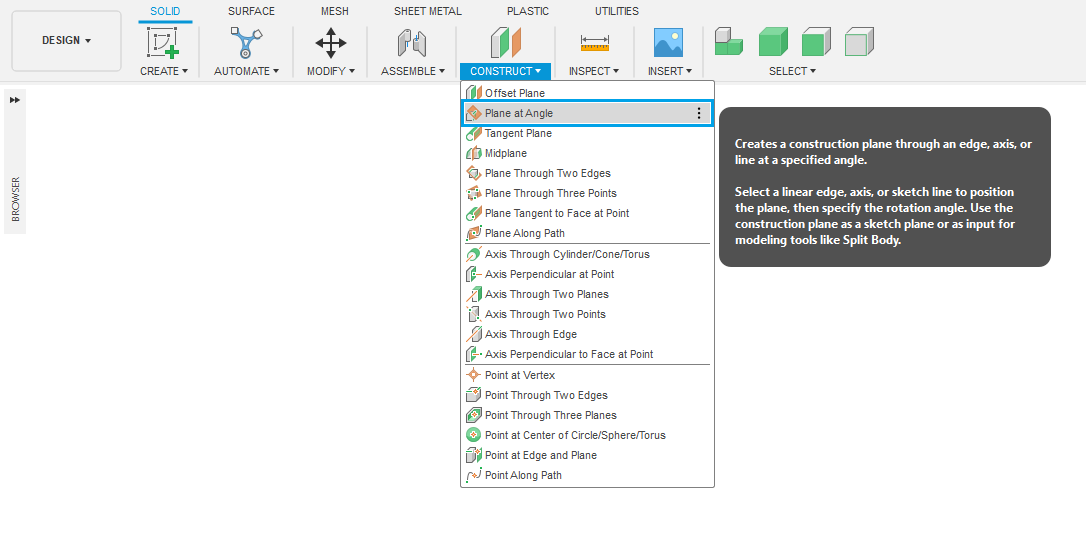

2. Press the Plane at Angle button in the Solid > Construct.

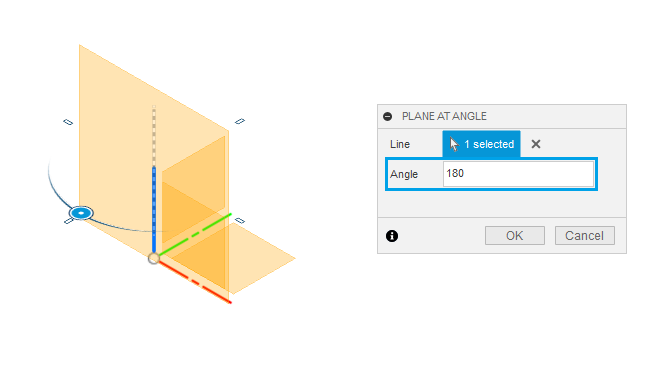

3. Create a new plane rotated 180 degrees.

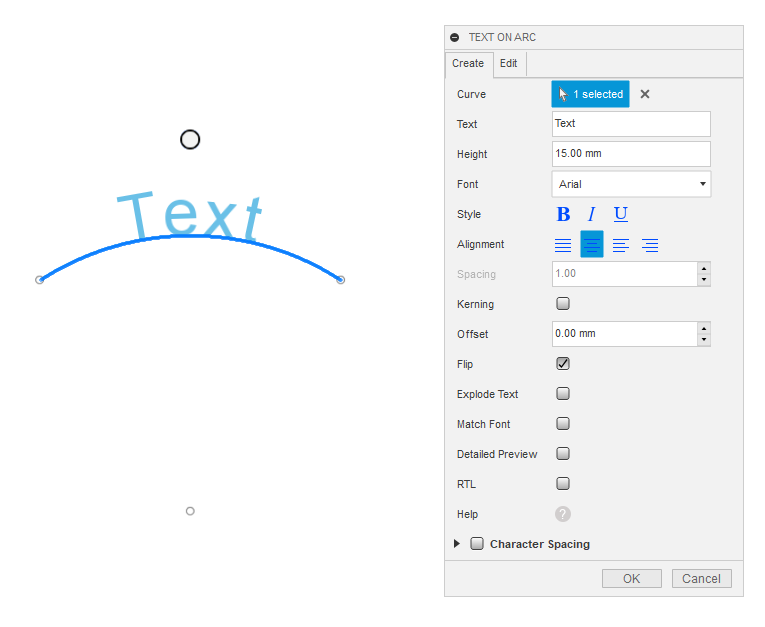

4. Text on an arc.
